Technology Is
a Design Decision.
Architecture defines how a building should work, feel and respond to its context. But the construction system influences how efficiently that architectural idea can become built space. Wall build-up, structural logic and detailing are part of the design equation from the beginning.
Design more usable space — not more building.
Design the space.
Not the walls.
A floor plan is usually discussed in terms of rooms, circulation, orientation and proportion. Yet every square metre of wall also affects the relationship between the building envelope and the space people actually use.
Different construction systems can therefore produce different gross-to-net relationships even when they respond to the same architectural brief. The relevant question is not simply how thin a wall is, but how the complete structural and envelope system affects the building as a whole.
Area that must be built.
Structural walls, envelope build-up and circulation all contribute to the total building footprint and construction volume.
Space the building actually delivers.
Bedrooms, living areas, kitchens and circulation are the spaces experienced and used by the client.
The relationship matters.
Considering the construction system during design can help architects evaluate how effectively gross building area becomes usable space.
Architectural efficiency begins before construction starts — when geometry, structure and building technology are still design decisions.
One brief.
Three building systems.

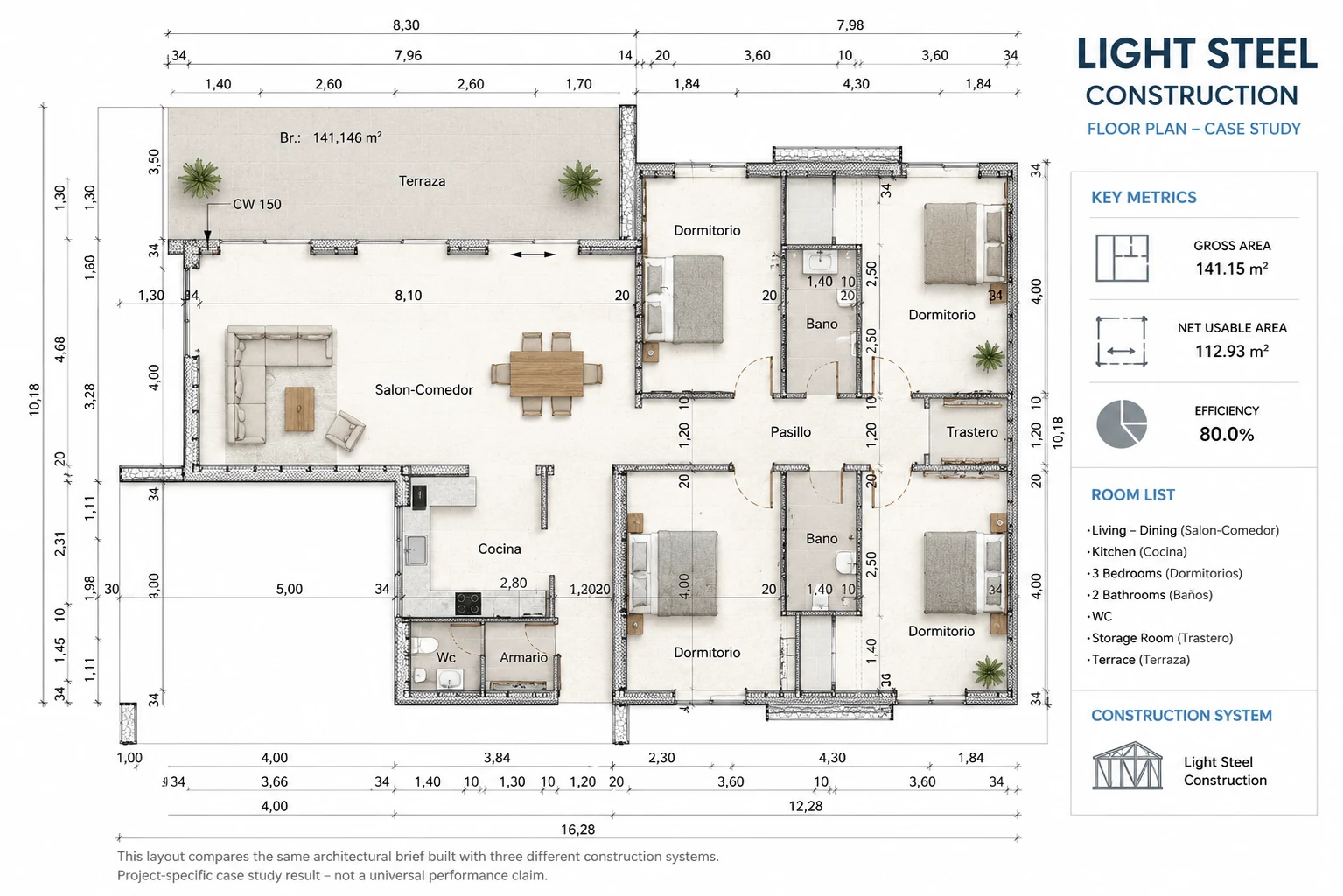

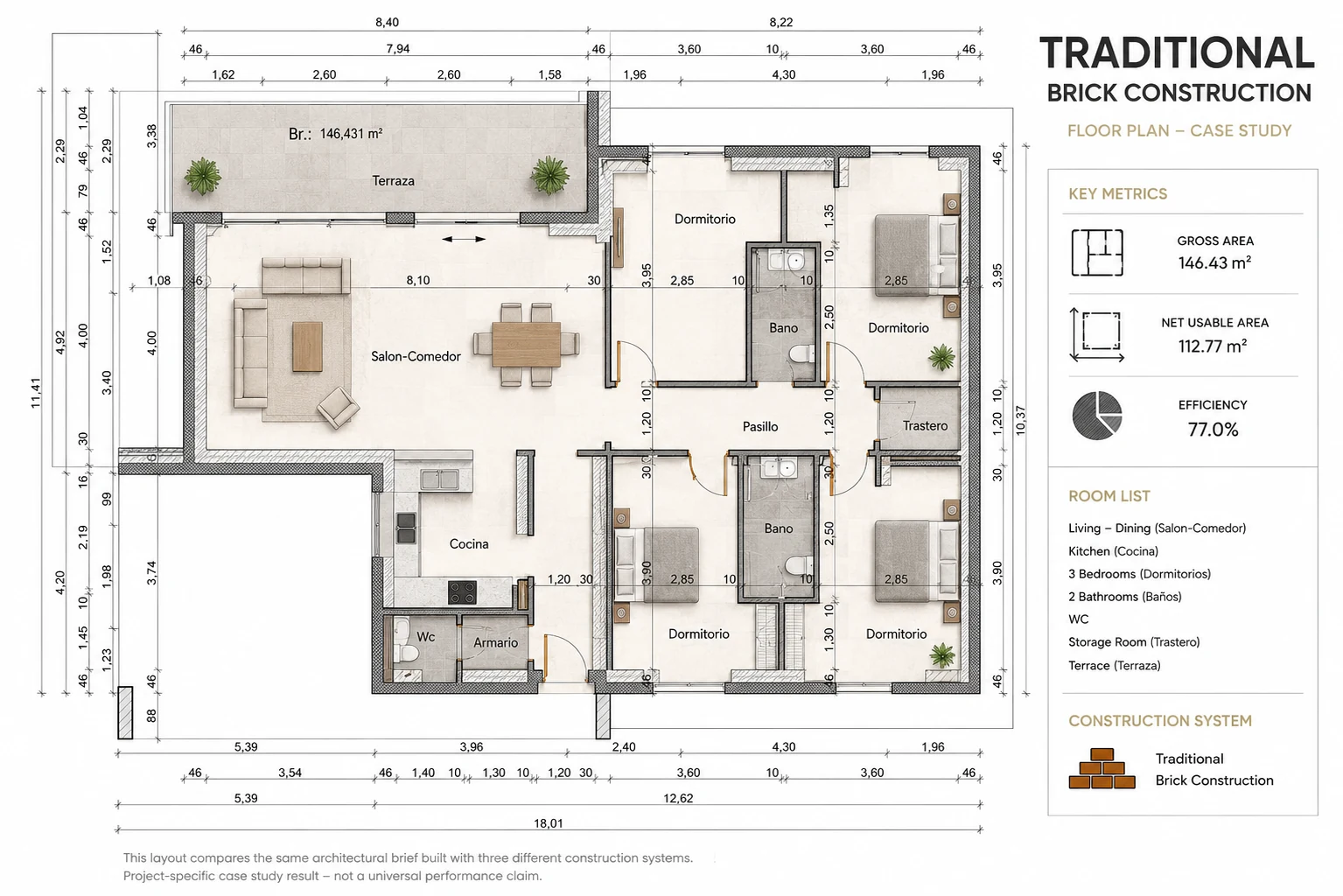

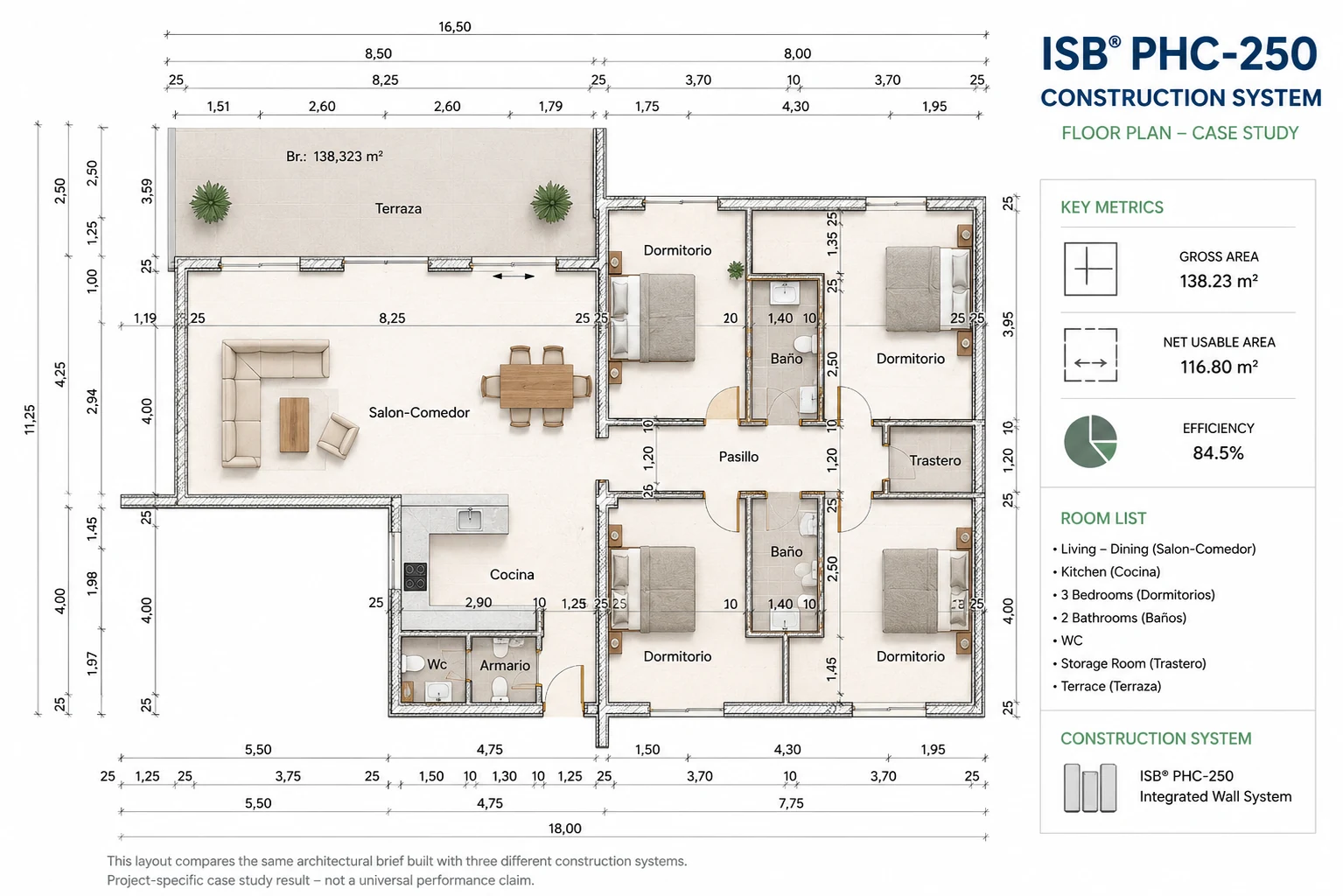

The same functional residential programme was developed using three different construction systems. The comparison illustrates how construction technology can influence gross area, net usable area and spatial efficiency within a specific architectural study.
Brick
Light Steel
PHC-250
additional net usable area in this specific design comparison.
At the same time, the ISB® PHC-250 version uses 8.20 m² less gross floor area than the traditional version. The result demonstrates why the construction system can be relevant during architectural planning — not only during construction.
Comparative values refer to this specific architectural study and should not be interpreted as universal performance percentages for any construction system. Actual results depend on building geometry, structural design, regulatory requirements and project-specific detailing.
From architecture to engineered system.
ISB® is not intended to replace architectural thinking with a catalogue of predefined buildings. The architectural concept remains the starting point. The system is then coordinated around geometry, structural requirements, openings, interfaces and project-specific engineering.
Architectural Design
Programme, spatial organisation, orientation, façade composition and architectural character are established by the design team.
Structural Logic
Load paths, reinforced-concrete zones, floor spans and structural requirements are integrated into the building concept.
ISB® System Planning
Wall and floor elements, reinforcement zones, openings and connections are coordinated for the specific project.
Technical Detailing
Foundations, wall junctions, floors, openings and interfaces are developed as part of a documented system rather than isolated construction decisions.
Construction Coordination
The design information supports a defined assembly and construction sequence, connecting architecture with execution on site.
The architect defines the building. The system helps translate that design into coordinated structure, envelope and construction logic.
Design for the project.
Not for a generic system.
A building system only becomes meaningful when it responds to architecture, site conditions, climate, regulation and the performance objectives of the individual project.
Architecture First
Contemporary, Mediterranean or traditional architectural language can be developed independently of the structural system. The technology supports the building rather than defining its visual identity.
Climate Response
Orientation, solar exposure, shading, openings and envelope strategy remain architectural decisions and should be coordinated for the local Spanish climate and project location.
Building Performance
Structural, thermal, acoustic, fire and building-physics requirements are evaluated through documented system data and project-specific engineering.
Details & Interfaces
Foundations, floors, wall junctions, openings and transitions are part of the design workflow, reducing the gap between architectural intention and construction detailing.
Documentation defines the system. Engineering defines the building.
Bring your design.
Build with the right team.
Architects do not need to hand over the project in order to work with ISB®. Existing design teams can remain at the centre of the architectural process, while system-specific engineering and construction expertise are added where required.
A coordinated project ecosystem
Bring your own team — or use an established project ecosystem.
